istio全局配置

kbsonlong 收录于云原生

2023-07-17 约 1100 字预计阅读 3 分钟 - 次阅读

全局关闭重试

istio默认重试2次

1
2
3
4
5
6
7
8
9
apiVersion: v1
data:
  mesh: |-
...
...
    defaultHttpRetryPolicy:
      attempts: 0
...
...

全局配置Access log

1
2
3
4
5
6
7
apiVersion: v1
data:
  mesh: |-
    accessLogEncoding: JSON
    accessLogFile: /dev/stdout
    accessLogFormat: "{\"authority\":\"%REQ(:AUTHORITY)%\",\"bytes_received\":\"%BYTES_RECEIVED%\",\"bytes_sent\":\"%BYTES_SENT%\",\"downstream_local_address\":\"%DOWNSTREAM_LOCAL_ADDRESS%\",\"downstream_remote_address\":\"%DOWNSTREAM_REMOTE_ADDRESS%\",\"duration\":\"%DURATION%\",\"istio_policy_status\":\"%DYNAMIC_METADATA(istio.mixer:status)%\",\"method\":\"%REQ(:METHOD)%\",\"path\":\"%REQ(X-ENVOY-ORIGINAL-PATH?:PATH)%\",\"protocol\":\"%PROTOCOL%\",\"request_id\":\"%REQ(X-REQUEST-ID)%\",\"requested_server_name\":\"%REQUESTED_SERVER_NAME%\",\"response_code\":\"%RESPONSE_CODE%\",\"response_flags\":\"%RESPONSE_FLAGS%\",\"route_name\":\"%ROUTE_NAME%\",\"start_time\":\"%START_TIME%\",\"upstream_cluster\":\"%UPSTREAM_CLUSTER%\",\"upstream_host\":\"%UPSTREAM_HOST%\",\"upstream_local_address\":\"%UPSTREAM_LOCAL_ADDRESS%\",\"upstream_service_time\":\"%RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)%\",\"upstream_transport_failure_reason\":\"%UPSTREAM_TRANSPORT_FAILURE_REASON%\",\"user_agent\":\"%REQ(USER-AGENT)%\",\"x_forwarded_for\":\"%REQ(X-FORWARDED-FOR)%\"}"
...

Sidecar 生命周期

Istio 中 Envoy 就绪后启动应用容器

在 kubernetes 中，Pod 中的 containers 启动就绪顺序是不确定的。如果应用容器就绪的时候，代理容器没有就绪，那么流量会失败。

Istio 1.7版本中引入配置 holdApplicationUntilProxyStarts，它使 Sidecar 注入器在 Pod 的容器列表的开始处注入 Sidecar，并配置它阻止所有其他容器的启动，直到代理准备好为止。默认情况下禁用此选项。 (Issue #11130)

Istio 中 Envoy 的退出机制以及配置优雅退出

缺省情况下，在收到 SIGTERM 后，Istio-agent 会在等待 terminationDrainDuration (缺省 5S）后退出，由于 Envoy 是 Istio-agent 的子进程，Envoy 也会随之退出。该缺省行为可能对于一些耗时较长的关键业务有影响，导致正在进行业务处理的链接被强制中断。

Istio 1.12 版本中引入环境变量 EXIT_ON_ZERO_ACTIVE_CONNECTIONS 以在排空期间跟踪活动连接，并在活动连接变为零时退出，而不是等待整个排空持续进行。默认情况下这是禁用的issues #34855

1
2
3
4
5
6
7
apiVersion: v1
data:
  mesh: |-
    defaultConfig:
      holdApplicationUntilProxyStarts: true
      proxyMetadata:
        EXIT_ON_ZERO_ACTIVE_CONNECTIONS: "true"

Istio 负载均衡策略

Istio 中配置负载均衡策略

istio 默认负载均衡策略是 ROUND_ROBIN，可以通过 DestinationRule 来配置负载均衡策略。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: mydemo-test-ps
  namespace: zsl-test
spec:
  host: mydemo-test-ps.zsl-test.svc.cluster.local
  subsets:
  - labels:
      publish-no: "5865185"
    name: v1
    trafficPolicy:
      loadBalancer:
        simple: LEAST_CONN
  trafficPolicy:
    loadBalancer:
      simple: RANDOM

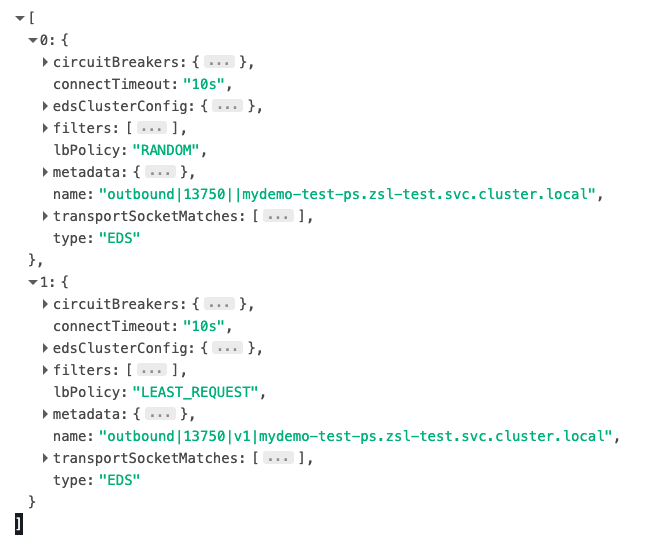

host: mydemo-test-ps.zsl-test.svc.cluster.local 默认为随机 RANDOM, v1 版本为最小连接 LEAST_CONN, 接下来看对应的 Envoy 配置

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
- circuitBreakers:
    thresholds:
    - maxConnections: 4294967295
      maxPendingRequests: 4294967295
      maxRequests: 4294967295
      maxRetries: 4294967295
      trackRemaining: true
  connectTimeout: 10s
  edsClusterConfig:
    edsConfig:
      ads: {}
      initialFetchTimeout: 0s
      resourceApiVersion: V3
    serviceName: outbound|13750||mydemo-test-ps.zsl-test.svc.cluster.local
  filters:
  - name: istio.metadata_exchange
    typedConfig:
      '@type': type.googleapis.com/envoy.tcp.metadataexchange.config.MetadataExchange
      protocol: istio-peer-exchange
  lbPolicy: RANDOM
  metadata:
    filterMetadata:
      istio:
        config: /apis/networking.istio.io/v1alpha3/namespaces/zsl-test/destination-rule/mydemo-test-ps
        default_original_port: 13750
        services:
        - host: mydemo-test-ps.zsl-test.svc.cluster.local
          name: mydemo-test-ps
          namespace: zsl-test
  name: outbound|13750||mydemo-test-ps.zsl-test.svc.cluster.local
  transportSocketMatches:
  - match:
      tlsMode: istio
    name: tlsMode-istio
    transportSocket:
      name: envoy.transport_sockets.tls
      typedConfig:
        '@type': type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
        commonTlsContext:
          alpnProtocols:
          - istio-peer-exchange
          - istio
          combinedValidationContext:
            defaultValidationContext:
              matchSubjectAltNames:
              - exact: spiffe://cluster.local/ns/zsl-test/sa/default
            validationContextSdsSecretConfig:
              name: ROOTCA
              sdsConfig:
                apiConfigSource:
                  apiType: GRPC
                  grpcServices:
                  - envoyGrpc:
                      clusterName: sds-grpc
                  setNodeOnFirstMessageOnly: true
                  transportApiVersion: V3
                initialFetchTimeout: 0s
                resourceApiVersion: V3
          tlsCertificateSdsSecretConfigs:
          - name: default
            sdsConfig:
              apiConfigSource:
                apiType: GRPC
                grpcServices:
                - envoyGrpc:
                    clusterName: sds-grpc
                setNodeOnFirstMessageOnly: true
                transportApiVersion: V3
              initialFetchTimeout: 0s
              resourceApiVersion: V3
        sni: outbound_.13750_._.mydemo-test-ps.zsl-test.svc.cluster.local
  - match: {}
    name: tlsMode-disabled
    transportSocket:
      name: envoy.transport_sockets.raw_buffer
  type: EDS
- circuitBreakers:
    thresholds:
    - maxConnections: 4294967295
      maxPendingRequests: 4294967295
      maxRequests: 4294967295
      maxRetries: 4294967295
      trackRemaining: true
  connectTimeout: 10s
  edsClusterConfig:
    edsConfig:
      ads: {}
      initialFetchTimeout: 0s
      resourceApiVersion: V3
    serviceName: outbound|13750|v1|mydemo-test-ps.zsl-test.svc.cluster.local
  filters:
  - name: istio.metadata_exchange
    typedConfig:
      '@type': type.googleapis.com/envoy.tcp.metadataexchange.config.MetadataExchange
      protocol: istio-peer-exchange
  lbPolicy: LEAST_REQUEST
  metadata:
    filterMetadata:
      istio:
        config: /apis/networking.istio.io/v1alpha3/namespaces/zsl-test/destination-rule/mydemo-test-ps
        default_original_port: 13750
        services:
        - host: mydemo-test-ps.zsl-test.svc.cluster.local
          name: mydemo-test-ps
          namespace: zsl-test
        subset: v1
  name: outbound|13750|v1|mydemo-test-ps.zsl-test.svc.cluster.local
  transportSocketMatches:
  - match:
      tlsMode: istio
    name: tlsMode-istio
    transportSocket:
      name: envoy.transport_sockets.tls
      typedConfig:
        '@type': type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
        commonTlsContext:
          alpnProtocols:
          - istio-peer-exchange
          - istio
          combinedValidationContext:
            defaultValidationContext:
              matchSubjectAltNames:
              - exact: spiffe://cluster.local/ns/zsl-test/sa/default
            validationContextSdsSecretConfig:
              name: ROOTCA
              sdsConfig:
                apiConfigSource:
                  apiType: GRPC
                  grpcServices:
                  - envoyGrpc:
                      clusterName: sds-grpc
                  setNodeOnFirstMessageOnly: true
                  transportApiVersion: V3
                initialFetchTimeout: 0s
                resourceApiVersion: V3
          tlsCertificateSdsSecretConfigs:
          - name: default
            sdsConfig:
              apiConfigSource:
                apiType: GRPC
                grpcServices:
                - envoyGrpc:
                    clusterName: sds-grpc
                setNodeOnFirstMessageOnly: true
                transportApiVersion: V3
              initialFetchTimeout: 0s
              resourceApiVersion: V3
        sni: outbound_.13750_.v1_.mydemo-test-ps.zsl-test.svc.cluster.local
  - match: {}
    name: tlsMode-disabled
    transportSocket:
      name: envoy.transport_sockets.raw_buffer
  type: EDS

202505151117095
