Istio性能测试

kbsonlong 收录于 云原生
 约 1800 字 预计阅读 4 分钟 - 次阅读

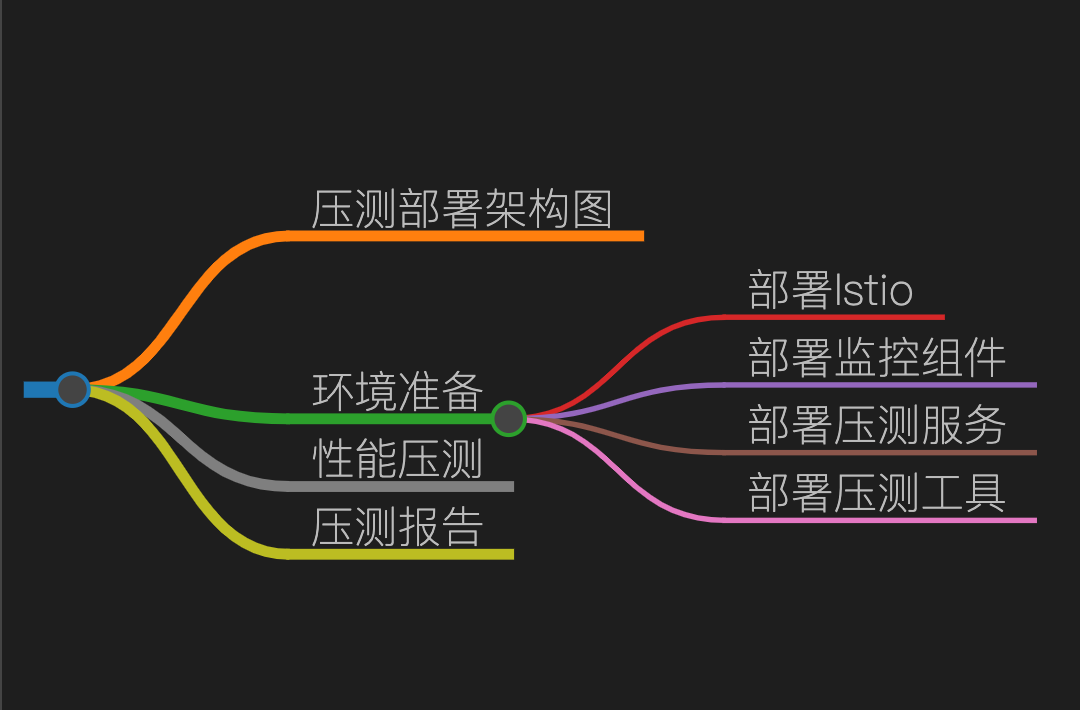

压测大纲

https://raw.githubusercontent.com/kbsonlong/notes_statics/main/images/images20220523221425.png

压测的必要性

压测部署架构图

https://raw.githubusercontent.com/kbsonlong/notes_statics/main/diagrams/Istio-Fortio-Benchmarking.drawio.png

环境准备

部署 Istio

部署监控组件

部署压测服务

Fortio v1版本

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196

apiVersion: apps/v1
kind: Deployment
metadata:
  name: fortio-server-l3
  labels:
    app: fortio-server-l3
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fortio-server-l3
  template:
    metadata:
      labels:
        app: fortio-server-l3
        version: v1
    spec:
      containers:
        - name: fortio-server-l3
          # 在中国，你可以使用 docker.mirrors.ustc.edu.cn/fortio/fortio:latest
          image: fortio/fortio:latest
          ports:
            - containerPort: 8080
              name: http-port
            - containerPort: 8078
              name: udp-port
            - containerPort: 8079
              name: grpc-port
            - containerPort: 8081
              name: https-port
          command:
            - fortio
            - server
---
apiVersion: v1
kind: Service
metadata:
  name: fortio-server-l3
spec:
  ports:
    - name: http-port
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: https-port
      port: 8081
      protocol: TCP
      targetPort: 8081
    - name: http2-grpc
      port: 8079
      protocol: TCP
      targetPort: 8079
    - name: udp-grpc
      port: 8078
      protocol: UDP
      targetPort: 8078
  selector:
    app: fortio-server-l3
  type: NodePort

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: fortio-server-l2
  labels:
    app: fortio-server-l2
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fortio-server-l2
  template:
    metadata:
      labels:
        app: fortio-server-l2
        version: v1
    spec:
      containers:
        - name: fortio-server-l2
          # 在中国，你可以使用 docker.mirrors.ustc.edu.cn/fortio/fortio:latest
          image: fortio/fortio:latest
          ports:
            - containerPort: 8080
              name: http-port
            - containerPort: 8072
              name: http-m
            - containerPort: 8078
              name: udp-port
            - containerPort: 8079
              name: grpc-port
            - containerPort: 8081
              name: https-port
          command:
            - fortio
          args: ["server", "-P", "8072 fortio-server-l3:8080"]
---
apiVersion: v1
kind: Service
metadata:
  name: fortio-server-l2
spec:
  ports:
    - name: http-m
      port: 8072
      protocol: TCP
      targetPort: 8072
    - name: http-port
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: https-port
      port: 8081
      protocol: TCP
      targetPort: 8081
    - name: http2-grpc
      port: 8079
      protocol: TCP
      targetPort: 8079
    - name: udp-grpc
      port: 8078
      protocol: UDP
      targetPort: 8078
  selector:
    app: fortio-server-l2
  type: NodePort

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: fortio-server-l1
  labels:
    app: fortio-server-l1
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fortio-server-l1
  template:
    metadata:
      labels:
        app: fortio-server-l1
        version: v1
    spec:
      containers:
        - name: fortio-server-l1
          # 在中国，你可以使用 docker.mirrors.ustc.edu.cn/fortio/fortio:latest
          image: fortio/fortio:latest
          ports:
            - containerPort: 8080
              name: http-port
            - containerPort: 8071
              name: http-m
            - containerPort: 8078
              name: udp-port
            - containerPort: 8079
              name: grpc-port
            - containerPort: 8081
              name: https-port
          command:
            - fortio
          args: ["server", "-P", "8071 fortio-server-l2:8072"]
---
apiVersion: v1
kind: Service
metadata:
  name: fortio-server-l1
spec:
  ports:
    - name: http-m
      port: 8071
      protocol: TCP
      targetPort: 8071
    - name: http-port
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: https-port
      port: 8081
      protocol: TCP
      targetPort: 8081
    - name: http2-grpc
      port: 8079
      protocol: TCP
      targetPort: 8079
    - name: udp-grpc
      port: 8078
      protocol: UDP
      targetPort: 8078
  selector:
    app: fortio-server-l1
  type: NodePort

Fortio v2版本

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196

apiVersion: apps/v1
kind: Deployment
metadata:
  name: fortio-server-l3
  labels:
    app: fortio-server-l3
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fortio-server-l3
  template:
    metadata:
      labels:
        app: fortio-server-l3
        version: v1
    spec:
      containers:
        - name: fortio-server-l3
          # 在中国，你可以使用 docker.mirrors.ustc.edu.cn/fortio/fortio:latest
          image: fortio/fortio:latest
          ports:
            - containerPort: 8080
              name: http-port
            - containerPort: 8078
              name: udp-port
            - containerPort: 8079
              name: grpc-port
            - containerPort: 8081
              name: https-port
          command:
            - fortio
            - server
---
apiVersion: v1
kind: Service
metadata:
  name: fortio-server-l3
spec:
  ports:
    - name: http-port
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: https-port
      port: 8081
      protocol: TCP
      targetPort: 8081
    - name: http2-grpc
      port: 8079
      protocol: TCP
      targetPort: 8079
    - name: udp-grpc
      port: 8078
      protocol: UDP
      targetPort: 8078
  selector:
    app: fortio-server-l3
  type: NodePort

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: fortio-server-l2
  labels:
    app: fortio-server-l2
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fortio-server-l2
  template:
    metadata:
      labels:
        app: fortio-server-l2
        version: v1
    spec:
      containers:
        - name: fortio-server-l2
          # 在中国，你可以使用 docker.mirrors.ustc.edu.cn/fortio/fortio:latest
          image: fortio/fortio:latest
          ports:
            - containerPort: 8080
              name: http-port
            - containerPort: 8072
              name: http-m
            - containerPort: 8078
              name: udp-port
            - containerPort: 8079
              name: grpc-port
            - containerPort: 8081
              name: https-port
          command:
            - fortio
          args: ["server", "-P", "8072 fortio-server-l3:8080"]
---
apiVersion: v1
kind: Service
metadata:
  name: fortio-server-l2
spec:
  ports:
    - name: http-m
      port: 8072
      protocol: TCP
      targetPort: 8072
    - name: http-port
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: https-port
      port: 8081
      protocol: TCP
      targetPort: 8081
    - name: http2-grpc
      port: 8079
      protocol: TCP
      targetPort: 8079
    - name: udp-grpc
      port: 8078
      protocol: UDP
      targetPort: 8078
  selector:
    app: fortio-server-l2
  type: NodePort

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: fortio-server-l1
  labels:
    app: fortio-server-l1
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fortio-server-l1
  template:
    metadata:
      labels:
        app: fortio-server-l1
        version: v1
    spec:
      containers:
        - name: fortio-server-l1
          # 在中国，你可以使用 docker.mirrors.ustc.edu.cn/fortio/fortio:latest
          image: fortio/fortio:latest
          ports:
            - containerPort: 8080
              name: http-port
            - containerPort: 8071
              name: http-m
            - containerPort: 8078
              name: udp-port
            - containerPort: 8079
              name: grpc-port
            - containerPort: 8081
              name: https-port
          command:
            - fortio
          args: ["server", "-P", "8071 fortio-server-l2:8072"]
---
apiVersion: v1
kind: Service
metadata:
  name: fortio-server-l1
spec:
  ports:
    - name: http-m
      port: 8071
      protocol: TCP
      targetPort: 8071
    - name: http-port
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: https-port
      port: 8081
      protocol: TCP
      targetPort: 8081
    - name: http2-grpc
      port: 8079
      protocol: TCP
      targetPort: 8079
    - name: udp-grpc
      port: 8078
      protocol: UDP
      targetPort: 8078
  selector:
    app: fortio-server-l1
  type: NodePort
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: fortio-server-l1
spec:
  hosts:
    - fortio-server-l1
  http:
  - route:
    - destination:
        host: fortio-server-l1
        subset: v1
      weight: 10
    - destination:
        host: fortio-server-l1
        subset: v2
      weight: 90

---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: fortio-server-l2
spec:
  hosts:
    - fortio-server-l2
  http:
  - route:
    - destination:
        host: fortio-server-l2
        subset: v1
      weight: 0
    - destination:
        host: fortio-server-l2
        subset: v2
      weight: 100

---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: fortio-server-l1
spec:
  host: fortio-server-l1
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: fortio-server-l2
spec:
  host: fortio-server-l2
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2

部署压测工具

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

apiVersion: apps/v1
kind: Deployment
metadata:
  name: fortio-client
  labels:
    app: fortio-client
    version: v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fortio-client
  template:
    metadata:
      labels:
        app: fortio-client
        version: v2
    spec:
      containers:
        - name: fortio-client
          image: fortio/fortio:latest
          ports:
            - containerPort: 8080
              name: http-port
            - containerPort: 8078
              name: udp-port
            - containerPort: 8079
              name: grpc-port
            - containerPort: 8081
              name: https-port
          command:
            - fortio
            - server
---
apiVersion: v1
kind: Service
metadata:
  name: fortio-client
spec:
  ports:
    - name: http-port
      port: 8080
      protocol: TCP
      targetPort: 8080
    - name: https-port
      port: 8081
      protocol: TCP
      targetPort: 8081
    - name: http2-grpc
      port: 8079
      protocol: TCP
      targetPort: 8079
    - name: udp-grpc
      port: 8078
      protocol: UDP
      targetPort: 8078
  selector:
    app: fortio-client
  type: NodePort

性能压测

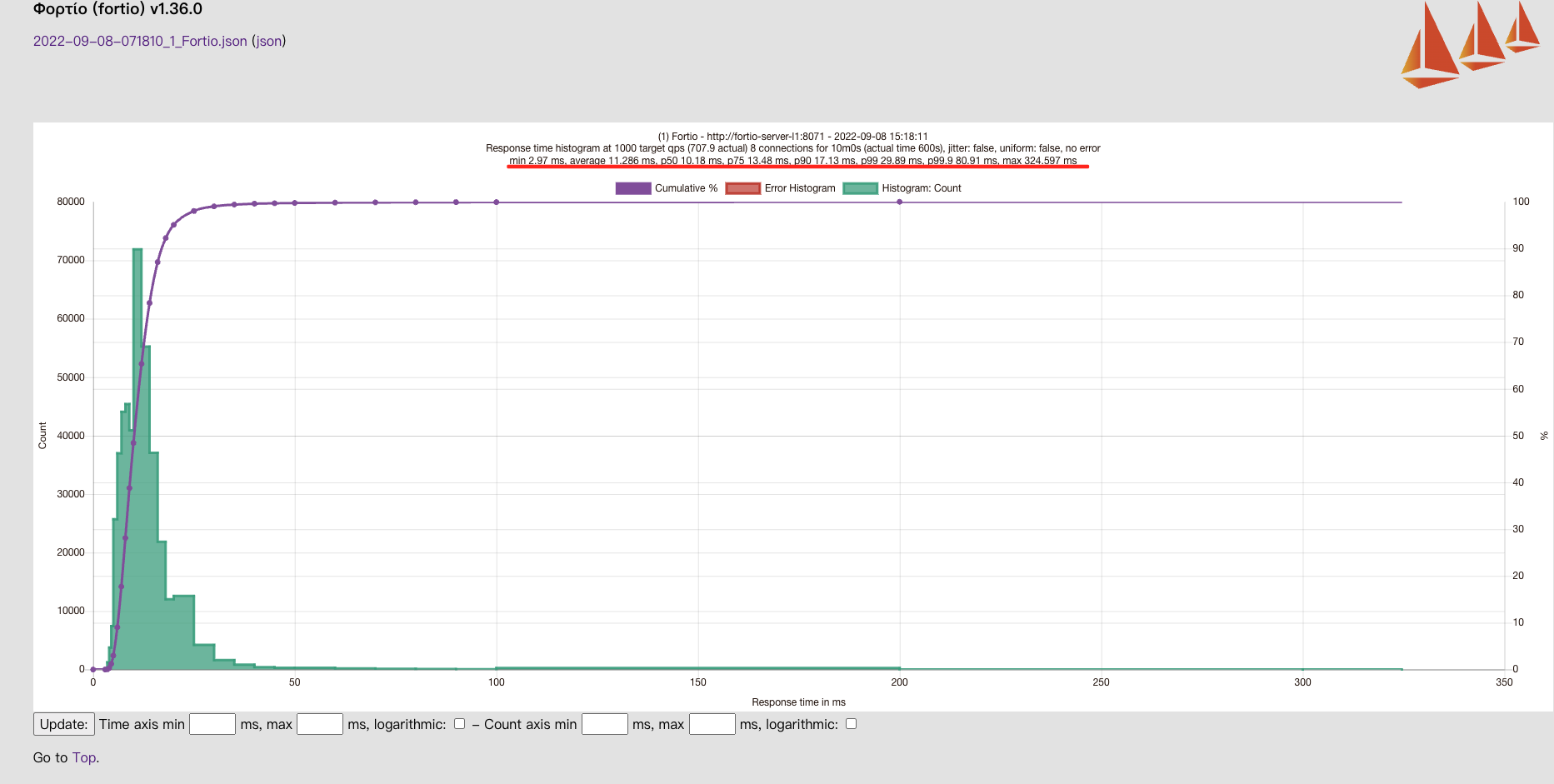

压测报告

https://raw.githubusercontent.com/kbsonlong/notes_statics/master/images/20220908154225.png

画红线部分

  • min: 最小响应时间2.97ms
  • average: 平均响应时间11.286ms
  • P50: 50%的请求响应时间在10.18ms内
  • P75: 75%的请求响应时间在13.48ms内
  • P90: 90%的请求响应时间在17.13ms内
  • P99: 99%的请求响应时间在29.89ms内
  • P99.9: 99.9%的请求响应时间在80.91ms内
  • max: 最大响应时间324.597ms

参考资料

记一次 Istio 冲刺调优

你的 Istio Mesh 性能及格吗

Istio 性能基准测试

性能绘图

Istio 性能和可扩展性

更新于 2022-09-11
CC BY-NC 4.0
阅读原始文档
LINE Myspace
Istio
返回 | 主页
0%
